Which Immersion Heater Material Is Best? Copper, Incoloy, Superloy & Titanium Explained

Which Immersion Heater Material Is Best? Copper, Incoloy, Superloy & Titanium Explained

Chapters

  1. Introduction
  2. What Is a Copper Immersion Heater?
  3. What is an Incoloy Immersion Heater?
  4. What Is a Titanium Immersion Heater?
  5. What Is a Superloy Immersion Heater?
  6. Copper / Incoloy / Superloy & Titanium: Side-by-Side Comparison
  7. Which Immersion Heater Is Right for Your Application?
  8. Domestic vs Commercial Applications
  9. Common Faults Linked to Incorrect Element Choice
  10. When Replacing an Immersion Heater
  11. Why Genuine Immersion Heater Parts Matter
  12. Need Help Choosing the Right Immersion Heater?
  13. Popular Immersion Heater Ranges
  14. Frequently Asked Questions



Guide on Choosing between Copper, Incoloy, Superloy & Titanium Immersion Haters

Choosing the correct immersion heater is essential for long-term performance, efficiency, and reliability — especially in areas with hard water. Whether you’re replacing an existing element or specifying a new system, selecting the right option from our immersion heaters range can help reduce maintenance issues and extend system lifespan.

One of the most common questions engineers, installers, and facilities teams face is whether to use a copper or a titanium immersion heater. While both types are designed to heat water effectively, the right choice depends on water quality, usage level, and environment. This Heatraq guide explains the key differences between copper and titanium immersion heaters to help you make the right decision the first time.

What Is a Copper Immersion Heater?

Copper immersion heaters are the most commonly used type in domestic hot water cylinders and many light commercial applications.

Key characteristics

  • Manufactured using copper-sheathed elements
  • Excellent heat conductivity
  • Cost-effective and widely available

Advantages of copper immersion heaters

  • Lower initial cost
  • Suitable for soft to moderately hard water areas
  • Widely compatible with standard hot water cylinders

Limitations

  • More susceptible to limescale buildup
  • Shorter lifespan in hard water areas
  • Reduced efficiency over time if scale forms on the element

Copper immersion heaters remain a reliable choice where water conditions are favourable and usage levels are moderate.

What Is an Incoloy Immersion Heater?

Incoloy immersion heaters are designed to provide improved resistance to limescale build-up compared with standard copper elements. They are commonly used in unvented hot water cylinders and installations located in hard water areas where scale accumulation can reduce immersion heater efficiency and lifespan.

Key characteristics

  • Incoloy alloy heating element
  • Enhanced limescale resistance
  • Suitable for hard water conditions
  • Long service life

Advantages of Incoloy immersion heaters

  • Better scale resistance than copper
  • Suitable for hard water regions
  • Reliable long-term performance
  • Popular choice for unvented cylinders

Considerations

  • Higher cost than standard copper elements
  • Less corrosion-resistant than titanium

For many domestic installations in hard water areas, Incoloy offers an excellent balance between cost and durability.

What Is a Titanium Immersion Heater?

Titanium immersion heaters are designed for demanding environments, particularly where hard water or high usage levels are present.

Key characteristics

  • Titanium-sheathed heating element
  • Highly resistant to corrosion and scale
  • Designed for long-term durability

Advantages of titanium immersion heaters

  • Excellent resistance to limescale and corrosion
  • Longer operational lifespan
  • More consistent performance over time
  • Ideal for hard water areas

Considerations

  • Higher initial purchase cost
  • Typically chosen for longevity rather than upfront savings

In hard water regions, titanium immersion heaters often prove more economical over time due to reduced failures and maintenance requirements.

What Is a Superloy Immersion Heater?

Superloy immersion heaters are specifically designed for installations where enhanced corrosion resistance is required. They are commonly selected for aggressive water conditions where standard copper elements may experience premature failure.

Key characteristics

  • Corrosion-resistant Superloy element
  • Designed for challenging water conditions
  • Long service life
  • Suitable for domestic and commercial applications

Advantages of Superloy immersion heaters

  • Better corrosion resistance than copper
  • Suitable for aggressive water areas
  • Reliable long-term performance
  • Reduced maintenance requirements

Considerations

  • Higher initial cost than copper
  • Typically selected where water quality is a concern

Superloy immersion heaters provide an excellent middle ground between standard copper elements and premium titanium immersion heaters.

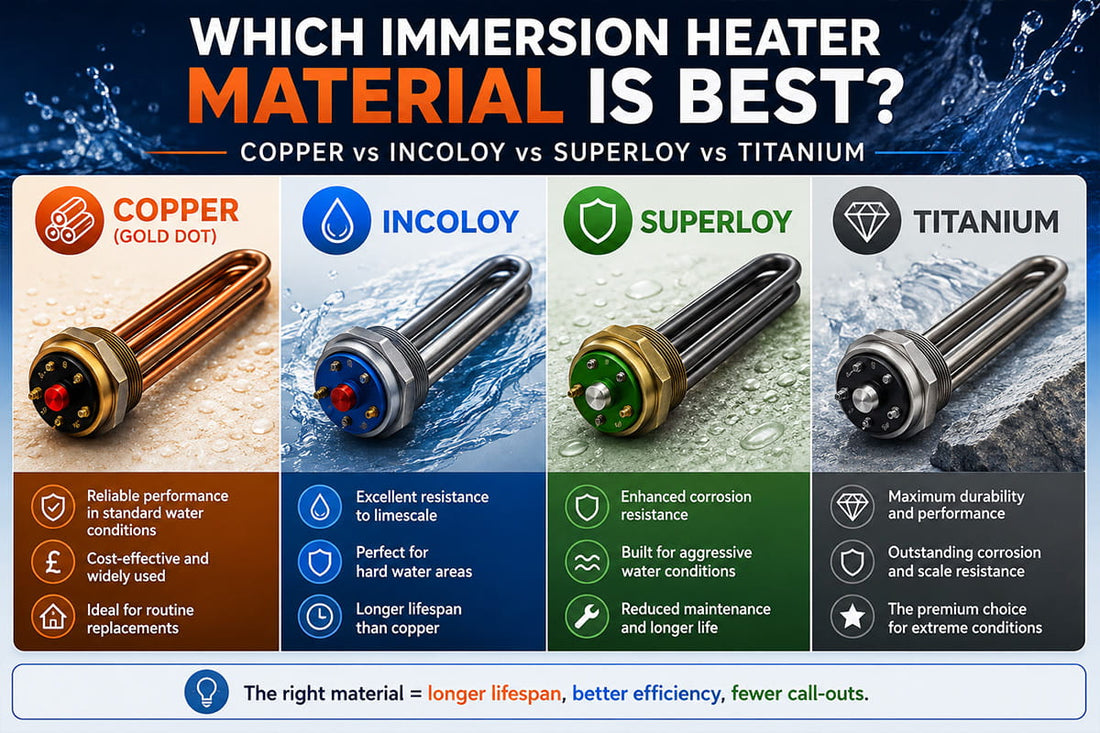

Copper / Incoloy / Superloy &Titanium: Side-by-Side Comparison


Which Immersion Heater Material Is Right for Your Application?

Choose Copper (Gold Dot) if:

  • You are in a normal water area
  • You want the most cost-effective replacement
  • You are replacing like-for-like

Choose Incoloy if:

  • You live in a hard water area
  • Limescale is a known issue
  • You want improved durability

Choose Superloy if:

  • Water conditions are aggressive
  • Previous elements have failed prematurely
  • You require enhanced corrosion resistance

Choose Titanium if:

  • Maximum durability is required
  • Water quality is particularly challenging
  • Long-term reliability is the priority

Domestic vs Commercial Applications

Domestic use

  • Copper immersion heaters are suitable for many homes
  • Titanium is recommended where hard water is known to be an issue

Commercial and hospitality use

  • Titanium immersion heaters are often preferred
  • Better suited to frequent use and higher demand
  • Reduced risk of failure and downtime

Hotels, care homes, cafés, and facilities-managed buildings often benefit significantly from titanium elements.

Common Faults Linked to Incorrect Element Choice

Using the wrong immersion heater type can lead to:

  • Repeated element failure
  • Overheating due to scale insulation
  • Tripped electrical protection
  • Reduced hot water availability

Many faults, such as overheating, repeated element failure, or tripping electrical protection are linked to limescale-related degradation. These issues are covered in more detail in our guide to common Heatrae Sadia water heater faults and which spare parts fix them.

When Replacing an Immersion Heater

When selecting a replacement immersion heater, always consider:

  • Water hardness
  • Existing element length and power rating (commonly 3kW)
  • Cylinder compatibility
  • Whether a thermostat replacement is also required

Replacing a copper element with titanium is often a straightforward upgrade, provided specifications match. When replacing an immersion heater, it’s also worth checking whether a compatible thermostat is required. In many cases, replacing both components together helps restore safe and consistent operation.

Why Genuine Immersion Heater Parts Matter

Using genuine, compatible immersion heaters ensures:

  • Correct fit and safe operation
  • Consistent heating performance
  • Reduced risk of premature failure

Matching the original part number or manufacturer specification is always recommended.

Need Help Choosing the Right Immersion Heater?

If you’re unsure whether a copper or titanium immersion heater is best for your system, identifying the correct replacement first can save time and prevent repeat failures.

Our team can help confirm compatibility and recommend the most suitable option based on water conditions, usage, and system type.

Shop Immersion Heaters by Material

At Heatraq, we supply genuine immersion heaters in a range of materials and lengths to suit different water conditions and hot water cylinder applications.

Copper (Gold Dot) Immersion Heaters

Incoloy Immersion Heaters

Superloy Immersion Heaters

Titanium Immersion Heaters

Frequently Asked Questions About Immersion Heater Materials

Which immersion heater material is best for hard water areas?
Titanium immersion heaters are best suited to hard water areas as they resist limescale buildup and corrosion more effectively than copper elements.

Are copper immersion heaters still suitable for domestic use?
Yes, copper immersion heaters remain suitable for many domestic applications, particularly in soft to moderately hard water areas.

Do titanium immersion heaters last longer than copper?
In hard water or high-usage environments, titanium immersion heaters typically offer a longer lifespan due to their resistance to scale and corrosion.

Can I replace a copper immersion heater with a titanium one?
In most cases, yes. Provided the length, power rating, and thread type match, upgrading from copper to titanium is a straightforward replacement.

Should the thermostat be replaced at the same time as the immersion heater?
Often yes. Replacing the thermostat alongside the immersion heater can help ensure safe temperature control and reliable performance.

What is the difference between Incoloy and Titanium immersion heaters?

Incoloy immersion heaters are designed to resist limescale in hard water areas, while titanium immersion heaters offer the highest level of corrosion resistance for demanding water conditions.

What is a Superloy immersion heater?

A Superloy immersion heater is a corrosion-resistant immersion heater designed for aggressive water conditions where standard copper elements may have a reduced lifespan.

Is a Gold Dot immersion heater made from copper?

Yes. Gold Dot is Heatrae Sadia's established immersion heater range and is generally considered a standard copper immersion heater suitable for most hot water cylinder applications.
