How to Identify the Correct Immersion Heater Replacement

How to Identify the Correct Immersion Heater Replacement

When an immersion heater stops working, one of the first questions people ask is:

“Which immersion heater do I need?”

Choosing the correct replacement isn’t always straightforward. Immersion heaters come in different lengths, materials and thermostat types, and selecting the wrong one can lead to poor heating performance or compatibility issues.

In this guide, we explain the key things to check before ordering a replacement so you can confidently choose the right immersion heater for your hot water cylinder.

Table of Contents

Quick Answer – How to Identify the Correct Immersion Heater

To identify the correct immersion heater replacement, check four key things:

  • The element length (commonly 11", 14", or 27")
  • The thread size (typically 2¼" BSP for domestic cylinders)
  • The element material (copper or titanium)
  • The thermostat compatibility

Measuring the existing element and checking the thermostat type will help ensure you order the correct replacement.

Steps to Identify the Correct Immersion Heater

Follow these simple steps before ordering a replacement:

Step 1 – Turn off the electrical supply: Always isolate the immersion heater at the consumer unit before removing it.

Step 2 – Remove the existing immersion heater: Once removed, you can inspect the element and measure its length.

Step 3 – Measure the element length: Measure from the thread to the tip of the element.

Step 4 – Check the element material: Determine whether the existing heater is copper or titanium.

Step 5 – Check the thermostat type: Confirm whether the thermostat matches the replacement heater.

Check the Element Length

One of the most important factors when replacing an immersion heater is the element length.

Immersion heaters are designed to efficiently heat the water in the cylinder, and the element length determines how much water can be heated.

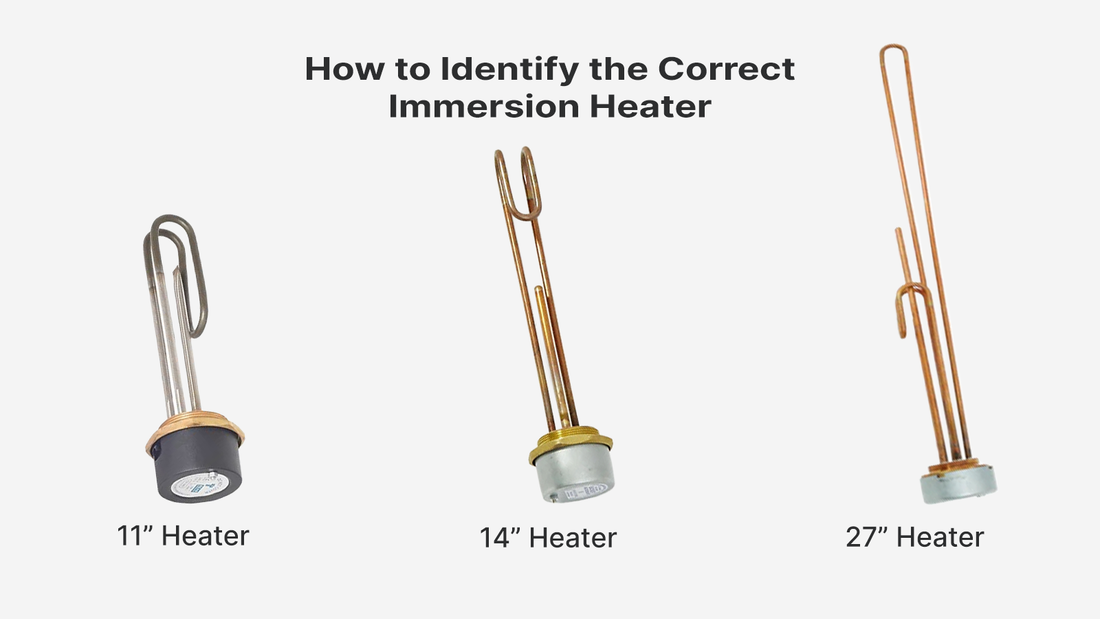

Common element lengths include:

  • 11-inch immersion heaters – typically used in smaller cylinders
  • 14-inch immersion heaters – one of the most common sizes
  • 27-inch immersion heaters – used in larger hot water cylinders

Using an element that is too short may not heat enough water, while an element that is too long may not fit correctly inside the cylinder.

If you're unsure, the safest approach is to measure the existing element after it's been removed.

You can browse our range of immersion heaters here.

Copper vs Titanium Elements

Another important consideration is the material of the heating element.

Most domestic hot water cylinders use copper immersion heaters, which are reliable and widely compatible.

Copper immersion heaters are ideal for:

  • standard domestic water supplies
  • traditional hot water cylinders
  • residential installations

However, in areas with aggressive or hard water, a titanium immersion heater may be recommended.

Titanium elements provide increased corrosion resistance and are often used in:

  • demanding water conditions
  • commercial installations
  • systems requiring longer lifespan

You can read our detailed guide comparing copper vs titanium immersion heaters to understand the differences.

Check the Thermostat Type

Most immersion heaters include a thermostat, which regulates the water temperature and provides safety protection.

The thermostat usually sits inside a pocket within the immersion heater and can often be replaced separately.

Common thermostat features include:

  • adjustable temperature control
  • safety cut-out protection
  • rod thermostat design

If you're replacing the heating element, it is often sensible to check the thermostat condition at the same time.

You can explore our range of immersion heater thermostats if a replacement is needed.

Thread Size and Compatibility

Most domestic immersion heaters use a 2¼ inch BSP thread, which is standard for the majority of hot water cylinders.

Before ordering a replacement, check the following:

  • element length
  • thermostat compatibility
  • element material
  • cylinder type

Taking a few minutes to confirm these details can prevent ordering the wrong part.

Signs Your Immersion Heater Needs Replacing

Some common signs that an immersion heater may need replacing include:

  • water not heating properly
  • immersion heater repeatedly tripping the fuse or RCD
  • visible corrosion on the element
  • thermostat failing to regulate temperature

If your system shows any of these symptoms, replacing the immersion heater can often restore reliable hot water.

Find the Right Immersion Heater Replacement

At Heatraq, we specialise in supplying genuine immersion heaters, thermostats and spare parts for domestic hot water systems.

Browse our range of:

  • immersion heaters
  • immersion heater thermostats
  • immersion heater components

If you're unsure which component you need, our team is always happy to help.

Frequently Asked Questions

How do I know which immersion heater I need?

Check the element length, thread size, thermostat compatibility and element material before ordering a replacement.

What is the most common immersion heater size?

The most common domestic sizes are 11", 14", and 27", depending on the cylinder capacity.

Are titanium immersion heaters better than copper?

Titanium immersion heaters offer improved corrosion resistance, particularly in aggressive water conditions, while copper heaters are suitable for most domestic systems.

Can I replace just the thermostat?

Yes. Many immersion heater thermostats can be replaced without changing the entire heating element.
