Introduction
Choosing the correct immersion heater length is essential to ensure your hot water cylinder heats efficiently and safely. Installing an element that is too short may only heat a small portion of the cylinder, while an element that is too long may not fit correctly inside the tank.
Most domestic immersion heaters in the UK come in three standard lengths: 11 inches, 14 inches and 27 inches. Each size is designed to suit different cylinder sizes and installation types.
In this guide, we explain the differences between common immersion heater lengths and show how to measure your existing element accurately before ordering a replacement.
If you are also unsure which material to choose, read our guide on Copper vs Titanium Immersion Heaters.
Common Immersion Heater Lengths
Immersion heaters are designed to sit inside the hot water cylinder and heat the surrounding water directly. The element length determines how much of the cylinder is heated and how quickly hot water becomes available.
11 Inch Immersion Heater
An 11-inch immersion heater is typically used in smaller cylinders or in systems where the heater is installed higher in the tank.
These heaters are commonly used for:
- Small domestic hot water cylinders
- Top-mounted immersion heaters
- Backup heaters in dual immersion systems
Because the heating element is shorter, it heats a smaller portion of the cylinder. This is often sufficient for smaller households or installations where the immersion heater is used as a secondary heat source.
14 Inch Immersion Heater
The 14-inch immersion heater is the most commonly used size in UK domestic hot-water cylinders.
This length provides a good balance between heating efficiency and compatibility with standard cylinders.
Typical installations include:
- Standard domestic hot water cylinders
- Replacement immersion heaters
- Electric-only hot water systems
Because the element extends further into the cylinder than an 11-inch heater, it heats a larger volume of water and generally provides better performance for everyday household use.
27 Inch Immersion Heater
A 27-inch immersion heater is designed for larger cylinders or installations where the heating element must reach deeper into the tank.
These heaters are commonly found in:
- Large domestic cylinders
- Commercial hot water systems
- High-demand properties
The longer element allows heat to be distributed across a larger section of the cylinder, ensuring a sufficient hot-water supply.
How to Measure an Immersion Heater
Correct measurement is essential when replacing an immersion heater. Ordering the wrong length is one of the most common reasons for incorrect replacements.
Step 1 — Safely Remove the Existing Heater
Before measuring the heater, ensure the electrical and water supplies are isolated. Immersion heaters are connected to mains electricity and should only be removed once the system is safely isolated.
After removing the heater from the cylinder, you can accurately measure the element.

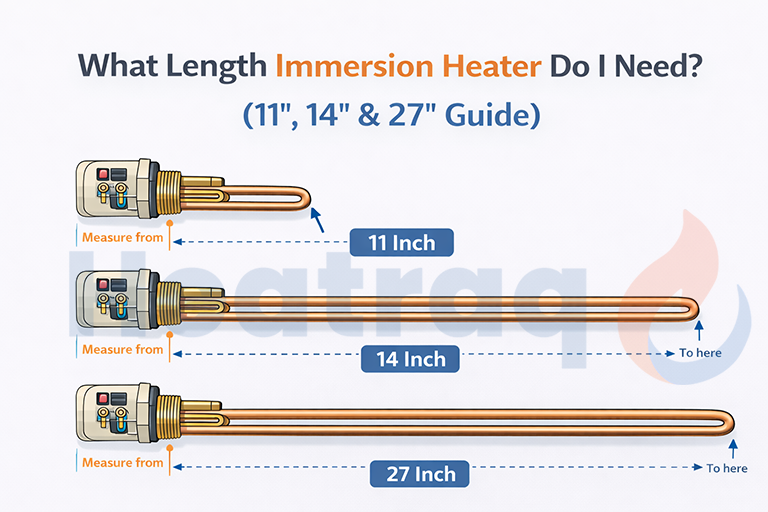

Step 2 — Measure From the Threaded Base
When measuring an immersion heater, start at the threaded base where it screws into the cylinder.
Do not include the thermostat head, wiring terminals or electrical housing when measuring.
Step 3 — Measure to the Tip of the Element
Measure from the threaded base to the end of the heating element.
Your measurement should normally match one of the standard sizes:
- 11 inches
- 14 inches
- 27 inches
If the measurement is close to one of these sizes, that is usually the correct replacement length.
Choosing the Right Heater for Your Cylinder
Selecting the correct immersion heater length ensures that the element sits correctly within the cylinder and heats water efficiently.
As a general guide:
|
Cylinder Size |
Typical Heater Length |
|
Small cylinders |
11 inch |
|
Standard domestic cylinders |
14 inch |
|
Large cylinders |
27 inch |
If the heater is too short, it may only heat the top portion of the cylinder, leaving insufficient hot water for household use.
If the heater is too long, it may not fit correctly inside the tank or could interfere with internal fittings.
Always check the length of the existing heater before ordering a replacement.
Need the Correct Immersion Heater Replacement?
If you're replacing an immersion heater, it's important to ensure you select the correct length, material and compatible thermostat.
At Heatraq, we supply a wide range of genuine immersion heater components including:
• Replacement heating elements
• Immersion heater thermostats
• Gaskets and seals
• Genuine manufacturer spare parts
👉 View Immersion Heater Components
Common Mistakes When Choosing an Immersion Heater
Although replacing an immersion heater is usually straightforward, there are a few common mistakes that can lead to incorrect replacements.
1. Measuring the Thermostat Instead of the Element
The thermostat housing is not included when measuring immersion heater length. Always measure only the heating element itself.
2. Confusing Heater Length With Heater Material
The length of the immersion heater is separate from the material of the element.
Immersion heaters are typically made from copper or titanium, depending on water conditions and corrosion resistance requirements.
If you are unsure which material to choose, see our guide on Copper vs Titanium Immersion Heaters.
3. Not Checking Thermostat Compatibility
Some immersion heaters require specific thermostats or safety cut-outs.
Ensuring the correct components are used will help prevent installation issues and ensure safe operation.
Frequently Asked Questions
What size immersion heater do I need?
Most domestic hot water cylinders use a 14-inch immersion heater, which provides good heat coverage within standard cylinder sizes.
How do I measure an immersion heater?
Measure from the threaded base of the heater to the tip of the heating element. Do not include the thermostat housing or electrical head.
Can an immersion heater be too long?
Yes. If the element is too long, it may not fit correctly inside the cylinder or could interfere with internal fittings.
What is the most common immersion heater length?
The 14-inch immersion heater is the most commonly used size in UK domestic hot-water cylinders.
