Express Spare Parts

Shop genuine Heatrae Sadia Express spare parts for compatible 7-litre and 15-litre vented water heaters. Find replacement 1kW and 3kW element plate assemblies, thermostats, thermal cut-outs, control valves, outlet spouts, terminal covers and sealing components. Always confirm the complete Express model, power rating and original part number before ordering.

Genuine Heatrae Sadia Express Spare Parts

Heatrae Sadia Express water heaters have been produced in several capacities, power ratings and generations. The best-known current models include the compact Express 7/1, Express 7/3 and Express 15/3 vented water heaters, while older Express appliances may use substantially different components.

Heatraq supplies genuine Express spare parts, including 1kW and 3kW element plate assemblies, thermostats, over-temperature cut-outs, inlet control valves, outlet spouts, terminal covers, gaskets and installation components.

Although two parts may look similar, compatibility can depend on the complete model, manufacturing generation, electrical rating and installation arrangement. Always confirm the original part number and appliance details before ordering.

How to Identify the Correct Express Spare Part

Begin by finding the data label on the water heater. Depending on the model, it may be positioned on the casing, underneath the appliance or behind a removable terminal cover.

Record the following information:

  • Complete Express model number
  • Water-storage capacity
  • Electrical input, such as 1kW or 3kW
  • Serial number or approximate manufacturing date
  • Original component part number
  • Any voltage or temperature rating shown
  • Whether the appliance is a current or older Express model

For example, Express 7/1 and Express 7/3 heaters have a similar capacity but use different-rated heating elements. Older Express models may also require components that do not fit current 7-litre and 15-litre appliances.

If the original part number cannot be found, contact Heatraq with clear photographs of the appliance data label, the complete heater and the component requiring replacement.

Express Heating Elements and Element Plate Assemblies

The heating element transfers electrical energy into the stored water. Element failure can result from normal wear, electrical damage or limescale accumulation, particularly in hard-water areas.

Current Express heaters can use different element plate assemblies according to their electrical input. The 1kW and 3kW versions must not be treated as interchangeable simply because their mounting arrangements appear similar.

Before selecting an element, check:

  • The original part number
  • The heater’s complete model
  • The electrical input
  • The supply and circuit requirements
  • The electrical connections
  • The gasket and mounting arrangement

A replacement gasket should be inspected or renewed when an element plate is removed. The heater must be refilled and checked for leaks before the electrical supply is restored.

Repeated element failure can indicate an underlying problem such as excessive scale, incorrect thermostat operation or unsuitable electrical connections.

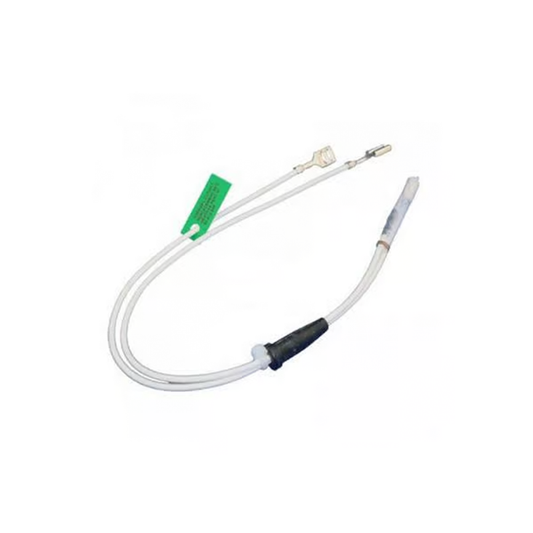

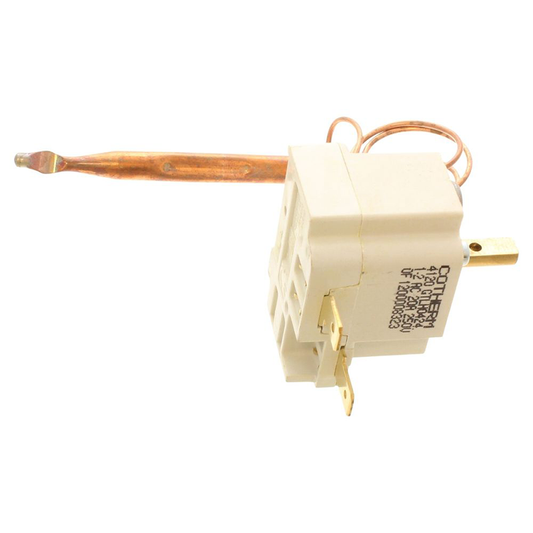

Express Thermostats and Over-Temperature Cut-Outs

The thermostat regulates the water temperature during normal operation. The over-temperature cut-out provides additional protection by interrupting the electrical supply if an unsafe temperature is detected.

A heater that is not producing hot water does not automatically require a new thermostat. Similar symptoms can be caused by:

  • Loss of electrical supply
  • A failed heating element
  • An activated or faulty cut-out
  • Loose or damaged wiring
  • Poor terminal connections
  • An incorrectly fitted control component

Thermostats and cut-outs can differ between Express generations. Match the original part number rather than relying solely on the component’s appearance.

A cut-out that repeatedly activates should not simply be reset. The underlying reason for the overheating must be identified before the appliance is returned to service.

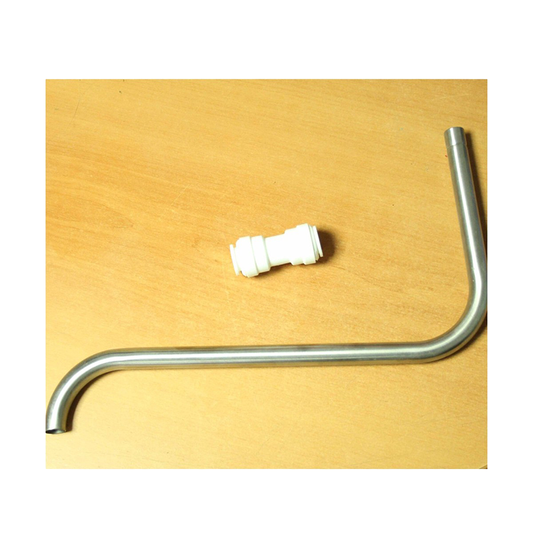

Express Inlet Valves and Outlet Spouts

Current compact Express heaters use a vented open-outlet arrangement. As the stored water heats and expands, a small amount of water may discharge from the outlet spout. This can be normal during a heating cycle.

The outlet must not be obstructed or connected to a conventional restrictive tap arrangement unless the appliance instructions specifically permit it. An unsuitable outlet can prevent expansion water from escaping safely.

Inlet control valves, outlet spouts and adaptors should always be selected for the exact Express model and installation. The discontinued 95605444 Express control valve has been superseded by 7883639 for compatible applications, but the complete appliance details should still be checked before ordering.

Persistent water flow, leakage when the appliance is cold or abnormal discharge should be investigated rather than assumed to be normal expansion.

Express Covers, Seals and Installation Components

This collection also includes genuine service components such as terminal covers, element plate gaskets, fixing kits and outlet-spout adaptors.

Terminal covers protect users from live electrical connections and must be securely installed before the heater is energised. Never operate an Express water heater with its electrical terminals exposed.

Gaskets should be checked whenever an element plate is removed. A damaged, compressed or incorrectly positioned seal can allow water to reach electrical components.

Fixings and adaptors may vary between current and older Express models. Confirm their dimensions and compatibility before installation.

Diagnosing an Express Water Heater Fault

Several different faults can produce the same visible symptom. For example, a heater that is not producing hot water could have an electrical-supply problem, failed element, thermostat fault, activated thermal cut-out or damaged internal connection.

Before ordering parts, a competent professional should safely isolate and test the appliance. Replacing components without diagnosis can add unnecessary cost without correcting the original fault.

A complete water heater replacement may be more practical when:

  • The water container or casing is leaking
  • Several major components have failed
  • The required spare part is discontinued
  • The appliance has extensive limescale damage
  • The electrical connections are badly damaged
  • Repair costs are approaching the cost of a new heater
  • The existing capacity or recovery time no longer meets demand

Heatraq also supplies complete Heatrae Sadia Express water heaters when replacement is more suitable than repair.

Need Help Finding an Express Spare Part?

If you are unsure which component is required, contact Heatraq before ordering. Please provide:

  • The complete Express model
  • The capacity and power rating
  • The serial number
  • The original part number
  • Clear photographs of the appliance label
  • Clear photographs of the existing component

This information helps us check compatibility and reduces the risk of selecting a similar-looking but unsuitable part.

Express water heaters contain mains-voltage electrical components and very hot water. Internal testing, component replacement and recommissioning should be undertaken by a suitably competent professional.

Frequently Asked Questions: Express Water Heater Spares

How do I identify which Heatrae Sadia Express model I have?

Check the appliance data label for the complete model, capacity, power rating and serial number. Current compact models include the Express 7/1, 7/3 and 15/3, but older Express appliances can use substantially different parts.

Are all Express spare parts interchangeable?

No. Compatibility can depend on the Express model, capacity, power rating and manufacturing generation. Always match the original part number and complete appliance details rather than ordering from appearance alone.

How do I choose between a 1kW and 3kW Express element?

Check the complete model and electrical rating shown on the appliance data label. The 1kW and 3kW element plate assemblies must not be treated as interchangeable, even if their mounting plates appear similar.

What is the difference between an Express thermostat and an over-temperature cut-out?

The thermostat regulates water temperature during normal operation. The over-temperature cut-out is a safety device that interrupts the electrical supply if excessive temperature is detected. A repeatedly activating cut-out indicates a fault requiring investigation.

Why is my Express water heater not heating?

Possible causes include loss of electrical supply, a failed element, faulty thermostat, activated over-temperature cut-out or damaged wiring. The appliance should be properly tested before replacement parts are ordered.

Is it normal for water to drip from an Express outlet spout?

A small amount of water can discharge from the spout while a vented Express heater is heating because the stored water expands. Persistent flow, discharge while cold or abnormal leakage should be inspected.

What replaces the discontinued 95605444 Express control valve?

The discontinued 95605444 control valve has been superseded by the Heatrae Sadia 7883639 inlet control valve for compatible Express applications. Confirm the complete heater model before ordering the replacement.

Do Express spare parts require professional installation?

Internal repairs involve mains electricity, hot water and safety-critical controls. Parts should be diagnosed and installed by a suitably competent professional who can safely test and recommission the appliance.
