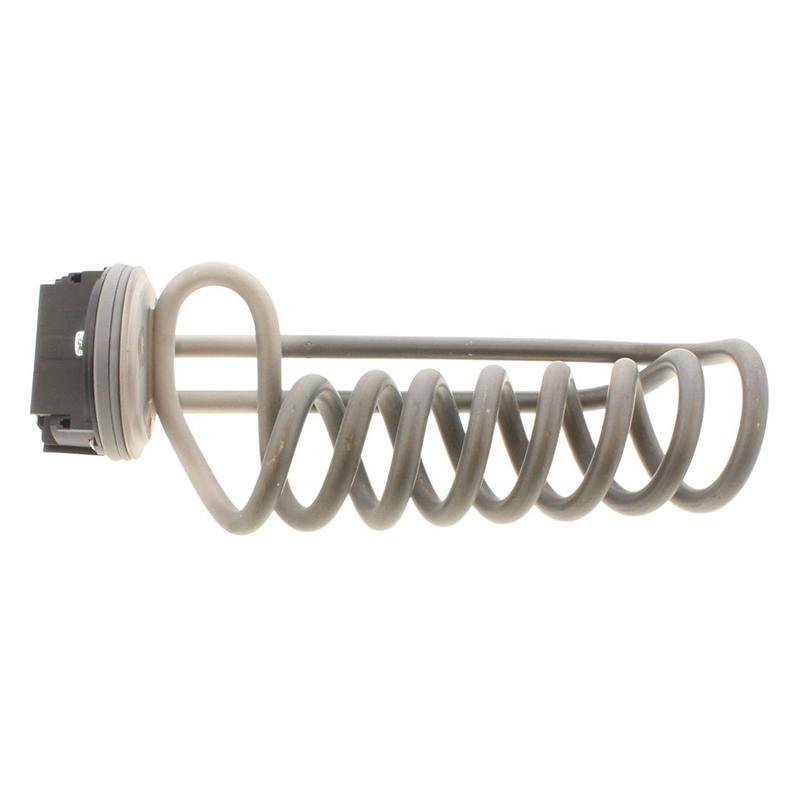

Genuine Heatrae Sadia 7787840 2.5kW Element & Cut-Out – Replaces 95606952

2.5kW Element Assembly and Safety Cut-Out

The Heatrae Sadia 7787840 Element Assembly and Cut-Out is the genuine current replacement for obsolete part number 95606952. It is designed for compatible Heatrae Sadia Supreme boiling-water dispensers and selected equivalent appliances sold under other brands.

The assembly combines the 2.5kW heating element with its associated over-temperature safety cut-out, providing the principal water-heating and thermal protection components in one replacement assembly.

Direct Replacement for Obsolete Part 95606952

Heatrae Sadia has discontinued element assembly 95606952 and replaced it with part number 7787840. Customers searching for either number should order 7787840, subject to confirmation that the appliance model and serial number are compatible.

The replacement may differ slightly in appearance from the original 95606952 assembly. Installation should therefore follow the current manufacturer’s instructions rather than relying solely on the position or appearance of the removed component.

Compatible Supreme Models

Part 7787840 is used in selected versions of the following Heatrae Sadia Supreme boiling-water dispensers:

• Supreme 140
• Supreme 150
• Supreme 155
• Supreme 165
• Supreme 170
• Supreme 180

It may also be used in selected Santon Speediboil, Heatstore Ultima Profile Eco, PHS Supreme, Newlec and other compatible boiling-water dispensers. Compatibility can vary according to appliance capacity, generation and serial-number suffix.

Element and Cut-Out Function

The 2.5kW element heats the stored water within the boiling-water dispenser. The accompanying thermal cut-out provides separate over-temperature protection by interrupting the electrical supply if an unsafe temperature condition occurs.

If the existing cut-out has operated, the cause should be investigated before the replacement assembly is fitted. A tripped or failed cut-out can be associated with another fault, including scale accumulation, low water level, a control problem, restricted filling or incorrect operation.

Key Features

• Genuine Heatrae Sadia replacement assembly
• Current manufacturer part number 7787840
• Replaces obsolete part number 95606952
• 2.5kW heating element
• Includes over-temperature safety cut-out
• Designed for compatible Supreme boiling-water dispensers
• Suitable for selected equivalent branded appliances
• Two-year manufacturer’s warranty, subject to terms

Browse our full range of genuine Heatrae Sadia Supreme spare parts, including elements, solenoid valves, thermistors, control assemblies, wiring harnesses and tap components.

Product Details

Compatibility Check Before Ordering

Before ordering, confirm the complete appliance model, capacity, serial number and the part number on the existing element assembly. Do not select this component solely by comparing its appearance with the old element.

If the original part number cannot be identified, contact Heatraq with clear photographs of the appliance data label, element assembly and electrical connections.

Installation Information

The appliance must be disconnected from the electricity and water supplies before inspection or replacement. The tank must be safely drained before the element assembly is removed.

Installation, electrical safety testing and recommissioning should be completed by a suitably qualified person in accordance with the appliance manufacturer’s instructions. The replacement element must not be energised unless it is completely submerged in water.

After fitting, inspect the assembly for leaks and test the filling, heating, temperature-control and safety cut-out functions before returning the dispenser to service.
