Genuine Heatrae Sadia 95605021 Megaflo HE Cold Water Control Valve – Replaces 95605869

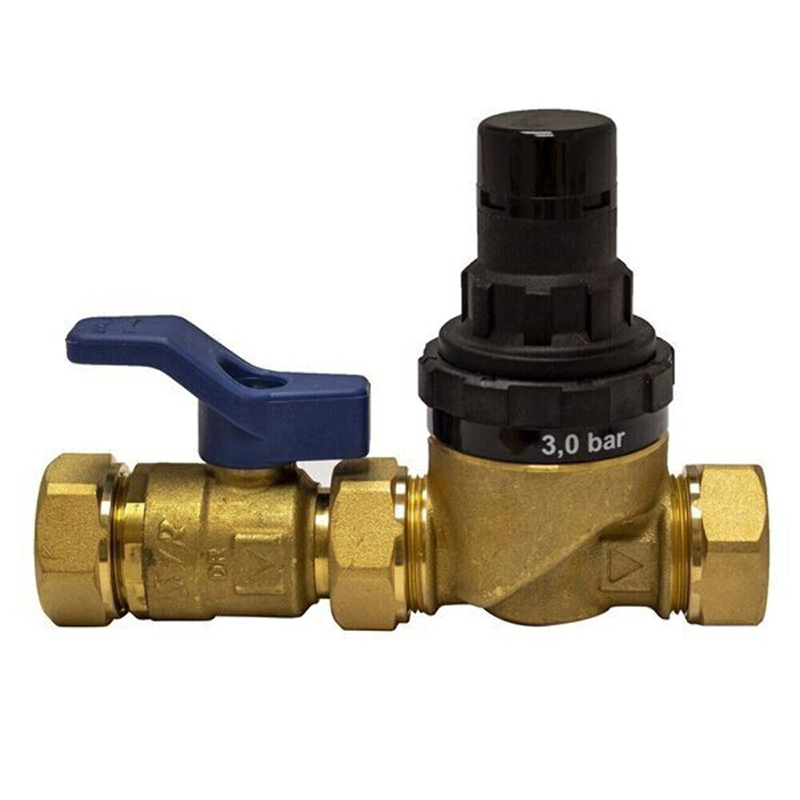

Replacement Megaflo HE Cold Water Control Valve

The Heatrae Sadia 95605021 Cold Water Control Valve is a genuine replacement multibloc valve for compatible Megaflo HE unvented hot water cylinders. It replaces the obsolete Heatrae Sadia part number 95605869.

The valve regulates the incoming mains water supply before it enters the cylinder. It incorporates pressure reduction, a water strainer, an isolating valve and a balanced cold-water take-off within a compact valve body.

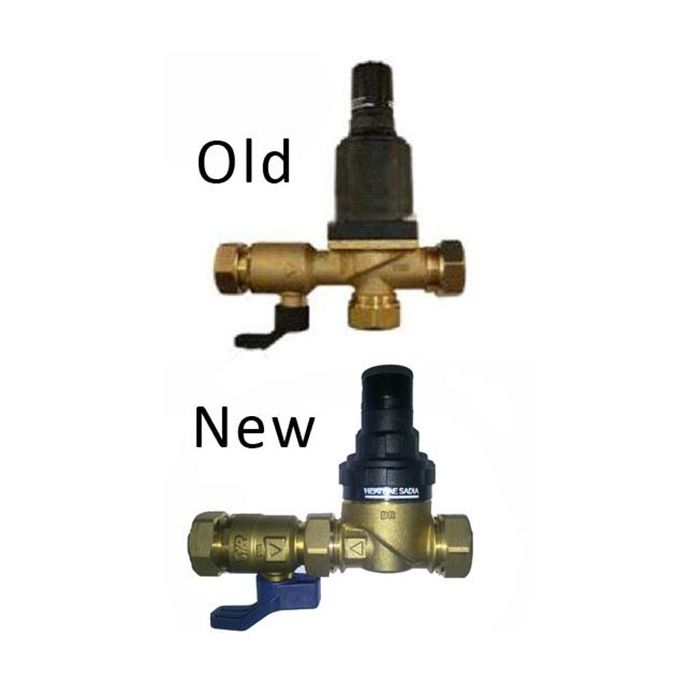

Replacement for Obsolete Part 95605869

Part number 95605021 is the replacement for the older 95605869 cold water control valve used on selected Megaflo HE cylinders. The replacement may differ in appearance or dimensions from the original component, so it should be fitted according to the current manufacturer’s instructions rather than copied solely from the orientation of the old valve.

Before ordering, check the number on the existing valve and the cylinder data label. Megaflo cylinders have been produced in several generations, and later models may use a different inlet control assembly.

Valve Functions

• Reduces the incoming mains pressure to approximately 3 bar
• Filters the incoming cold water supply
• Provides a local means of isolating the cylinder supply
• Provides a balanced-pressure cold-water connection
• Helps maintain the correct inlet conditions for the unvented cylinder

Important: Expansion Relief Valve Not Included

This cold water control valve does not incorporate the separate expansion relief valve required by the cylinder installation. The existing expansion relief arrangement must be inspected and retained or replaced with the correct compatible component as necessary.

The balanced cold-water take-off may be used to supply compatible mixer outlets where balanced hot and cold pressures are required.

Key Features

• Genuine Heatrae Sadia replacement part
• Current part number 95605021
• Replaces obsolete part number 95605869
• Designed for compatible Megaflo HE cylinders
• Approximately 3 bar pressure-reducing function
• Integrated strainer
• Integrated isolating valve
• Balanced cold-water take-off
• 22mm water connections
• Two-year manufacturer’s warranty, subject to terms

Browse our complete range of genuine Megaflo spare parts, including inlet control valves, expansion relief valves, immersion heaters, thermostats and cylinder service components.

Product Details

Installation Information

This component forms part of an unvented hot water system and must be installed by a suitably qualified engineer. The cold water supply and cylinder must be safely isolated and depressurised before the existing valve is removed.

Following installation, the engineer should check the regulated pressure, flow direction, balanced cold-water connection and all joints for correct operation and leaks. The cylinder’s expansion relief valve and discharge arrangement must also remain correctly installed, unobstructed and operational.

If you are unsure whether 95605021 is suitable, contact Heatraq with the cylinder model, capacity, serial number and clear photographs of the data label and existing valve before ordering.
